Floating Wind Meets Wave Energy

Why does floating wind matter more than fixed-bottom?

Fixed-bottom offshore wind is limited by seabed depth. Monopiles or jackets become uneconomical below 60 meters—foundation costs spike, installation vessel requirements increase, and extreme storm loading on the support structure demands massive steel. The economic water depth for fixed-bottom is roughly 10-50m globally; beyond that, marginal costs exceed electrical output gains. This constraint is why earlier in this grid series, we explored stratospheric wind alternatives and how demand-side flexibility reduces reliance on expanding generation capacity.

Floating platforms change the economics entirely. Instead of anchoring to bedrock, they use mooring systems—cables or chains attached to the seafloor—that allow the turbine structure to move (heave, pitch, roll) within a constrained radius. A 15 MW turbine on a floating spar buoy displaces the same weight in water regardless of depth, making it technically deployable in 100m, 500m, or 1000m with similar platform costs. The mooring system lengthens with depth (more chain = more cost), but the marginal cost per MW decreases as turbine size scales.

Why does this matter for the grid? Floating wind reaches resources that fixed-bottom cannot: the North Atlantic storm belt (50-200 km from shore, 200-800m depth), the Mediterranean deep basins, the waters around Japan and New Zealand. Wind speeds at these ultra-deep locations average 50% higher than shallow-water sites. A 15 MW floating turbine in the Atlantic can generate 1.5-2× the energy of a fixed-bottom 12 MW unit in the same region due to wind speed alone. More energy per turbine = fewer turbines needed = lower transmission costs = more economically competitive against fossil backup.

How do wind and wave power curves complement each other?

Wind and wave energy are both ocean phenomena, but they decouple more often than you'd expect. Here's why. Wind creates waves, but the energy transfer takes hours to days. A cold front brings strong winds to a coastal area, but the largest waves generated by that wind take 12-48 hours to arrive—they propagate across the ocean as swell. By the time the swell reaches a floating platform, the wind that created it may have moved on. The platform experiences either wind-dominant conditions (strong wind, small waves) or swell-dominant conditions (light wind, large swells).

A wind-only system captures power when wind speed exceeds cut-in (roughly 3 m/s), scales linearly to rated power (12-15 m/s), and shuts down above cut-out (25 m/s) to avoid damage. Wind output is binary and geographically limited—you get power when the right atmospheric pattern is overhead.

A wave-only system captures power from kinetic energy in the water column. Point absorbers (floating buoys) bob up and down with wave displacement; linear generators in the mooring convert the buoy motion into electricity. Output depends on wave energy flux—a function of wave height and period. Large swell provides power with light winds; the same system produces nothing if the ocean's flat, regardless of wind speed. Current wave energy converters average capacity factors of 25-35% because wave energy is spiky and seasonal.

Combine them on a single floating platform, and you get a 40-45% blended capacity factor—higher than either resource alone. During Atlantic winter, a system might generate 60% of the time from wind, 30% from waves, and overlap 20% of the time (wind + waves simultaneously). During Mediterranean summer, swell dies but thermal winds persist—wind dominates. The grid sees nearly constant output because the two resources rarely fail in tandem. One resource picks up when the other drops.

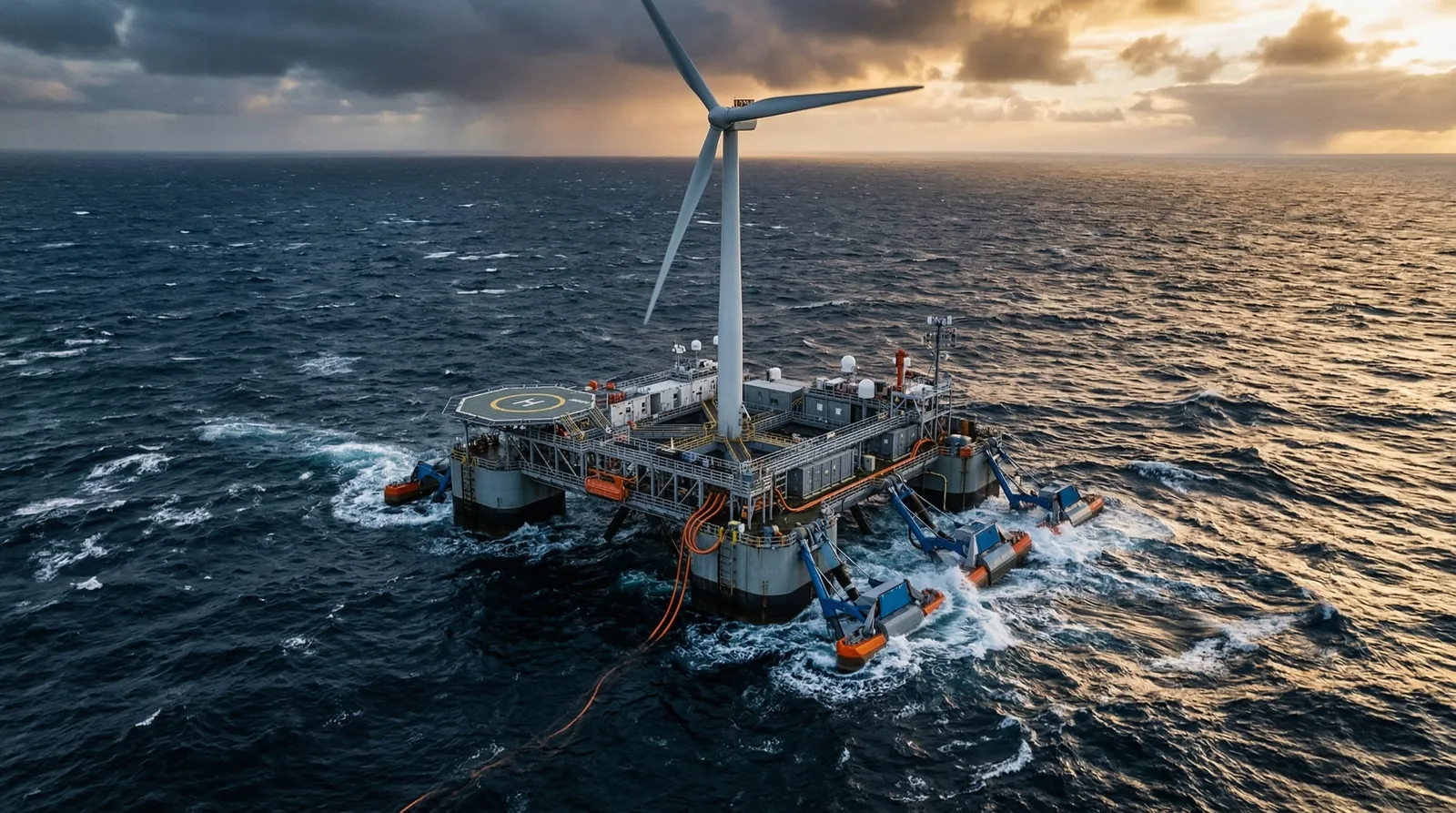

What do hybrid floating platforms look like, and how do they work?

A hybrid platform integrates three mechanical systems: the floating structure, the wind turbine, and the wave energy converter (WEC). The layout determines reliability and efficiency.

Semi-submersible design: The most mature floating platform type, used by Principle Power (their WindFloat design) and others. A semi-sub is a floating barge with three or four large hollow columns (typically 10-15 meters in diameter) connected by horizontal pontoons. The structure displaces enough water to support the wind turbine weight plus added mooring tension. A 15 MW turbine on a semi-sub weighs roughly 1,000-1,200 metric tons (nacelle + tower + rotor). The platform might weigh 3,000-4,000 tons depending on ballast and stability margins. For a hybrid configuration, the WEC attaches to the platform—either as a point absorber (buoy on a mooring attached to the platform) or as a heaving plate (part of the pontoon structure). A heaving plate WEC shares the mooring system with the wind platform, reducing redundancy and cost.

Spar design: A tall, slender cylinder moored at a single point (used by some BW Offshore designs). Spars are stable in heave (vertical motion) but susceptible to pitch and roll. Wave energy converters on spars are typically external buoys or surface-piercing systems that move relative to the spar structure. The WEC harnesses the relative motion between the spar and the wave motion, converting it to electricity via linear generators or hydraulic power-take-off systems (hydraulic motors driving electrical generators).

Tension-leg platform (TLP): Uses vertical mooring lines in tension to minimize vertical motion. TLPs excel in rough seas because vertical heave is minimal—the structure bounces less. This makes them ideal for extreme environments (Gulf of Mexico, North Sea) but expensive for deep water (tension increases with depth). Some developers embed WEC systems directly into the TLP column structure instead of externally mounted buoys, reducing moving parts.

The key integration challenge: when both systems are harvesting energy simultaneously, they produce loads and stresses the platform wasn't designed for with just one generator. The wind turbine creates a dynamic rotational load in the nacelle; the WEC creates heaving and shearing forces on the mooring and structure. Modern AI-based control systems monitor these loads continuously and coordinate power extraction—ramping down one resource if the other is pushing the platform toward stress limits. The result is stable electrical output (less variation in frequency and voltage) and extended platform life.

How does AI optimize hybrid power output in real time?

A purely mechanical hybrid system would produce erratic power: when wind spikes, force both systems to generate at maximum capacity simultaneously, overloading the platform. When waves calm, let wind turbine spin freely until the next gust. The result is the same intermittency problem the hybrid was supposed to solve.

AI control systems change this. Here's the workflow: Weather forecasting models (run on shore or on the platform) predict wind speed and wave height 20-60 minutes ahead using NOAA/ECMWF data. Simultaneously, the platform's sensors feed real-time measurements (anemometer, wave radar, strain gauges on the mooring, power output). An AI model running on edge hardware (small GPU inside the platform cabinet) receives both forecast and real-time data and calculates the optimal power draw from wind and wave systems over the next 30 minutes, subject to constraints:

Constraint 1: Physical limits. Wind turbine can't exceed its rated power (15 MW). WEC can't exceed its rated output (2-4 MW for current systems). Combined, they're capped at platform mooring tension limits.

Constraint 2: Grid stability signal. If the grid operator signals "supply voltage is dropping, we need more power," the AI prioritizes the resource with the fastest response time (typically wave energy, which responds in seconds; wind turbine response is minutes). If grid frequency is stable, the AI spreads generation across both resources to balance fatigue loading and maintenance intervals.

Constraint 3: Equipment health. Sensors on the mooring system measure cable strain. If strain is trending toward fatigue limits, the AI reduces overall power draw (let the platform heave freely, dampen mechanical stress). This extends cable life from 20-25 years to 25-30 years—massive cost savings in deep water where cable replacement is expensive and disruptive.

The optimization runs every 5 minutes. A simple control rule might be: if wind forecast shows gusts >18 m/s in next 20 minutes, gradually ramp down WEC to 50% capacity, leaving headroom for wind spikes without overstressing the platform. If wave radar shows swell energy flux dropping 30% over the next 30 minutes (dead period), ramp up wind turbine generator controller to extract maximum wind energy during the lull. Throughout, the grid operator sees stable 10-12 MW output (hybrid platform's nominal design capacity) from a location that would otherwise be 5 MW wind average without the wave component.

Which companies are building hybrid floating platforms?

Principle Power (USA/Portugal): Developers of the WindFloat design, currently operating multiple floats in pilot projects (Portugal, California). Principle Power's approach: deploy the wind turbine on a proven semi-submersible platform, then integrate a heaving-plate wave energy converters directly into the pontoon structure. The WEC shares the same mooring system as the wind platform, reducing cost and complexity. Principle Power is not yet operating commercial hybrids (wind-only projects are their focus through 2026), but they've published technical papers on hybrid integration feasibility. Target: first commercial hybrid deployment 2028-2029.

BW Offshore (Norway): Platform design company with extensive semi-submersible and spar experience (primarily oil & gas, transitioning to wind). BW Offshore is partnering with wave energy developers to embed WEC technology into their existing platform designs. Recent projects focus on repurposing legacy ocean infrastructure (old oil platforms) as hybrid wind + wave hosts. Main advantage: derisked platform design, known mooring systems, existing supply chain. Primary challenge: retrofitting old structures to new WEC systems requires detailed load analysis and re-certification. BW Offshore has announced hybrid pilot projects in the North Sea and Mediterranean for 2027 commissioning.

SBM Offshore (Netherlands): Global leader in floating production systems, now expanding into renewable hybrid integration. SBM operates largely in ultra-deep water (800-3000m), where their TLP experience is valuable. SBM's hybrid strategy: modify the TLP column structure to accept internal WEC converting the vertical heave of the platform itself into electricity. Advantages: no external moving parts (buoys) that need separate mooring; everything is integrated. Disadvantages: requires redesigning internal mechanical systems and proving reliability in extreme deepwater storms. SBM has contracts with multiple developers for feasibility studies (2026), with commercialization target 2029-2030.

University of Osaka research: Recent publication in early 2026 on gyroscopic wave energy devices—a high-angle-of-attack rotor that harvests energy from wave motion without rotating continuously. This technology is promising for embedded WEC applications (small size, high efficiency in broadband wave spectra), but it's pre-commercial. Several startups are licensing the Osaka approach for hybrid platforms, likely 2028-2030 market entry.

What infrastructure challenges make deep-water hybrid systems complex?

1. Mooring system redundancy and cost. Fixed-bottom turbines sit on bedrock; they fail or they don't. Floating platforms are tethered by mooring cables—their lifeline. If one mooring line breaks during a storm, the platform can drift. Traditional approach: deploy 3-4 mooring lines per platform, each sized to carry 100% of the anchor load. Cost: $2-4 million per platform just for mooring cables and anchors (utility-scale 12-15 MW turbine). For a hybrid, you now have higher dynamic loads (wind + wave motion creates more cable strain), which means thicker cable, longer service life requirements, and higher cost. Solution underway: AI-based dynamic positioning—a small thruster on the platform continuously corrects drift, allowing thinner mooring cables (cost reduction 15-20%). Tradeoff: thruster consumes electricity (0.3-0.5 MW), reducing net output 2-3%.

2. Cable installation and maintenance. A 500 MW hybrid floating wind farm (30-40 units) requires 20-50 km of inter-array cables (connecting platforms to an offshore substation) plus export cable to shore. Installing cables with platforms moving in waves requires specialist installation vessels (dynamically positioned, capable of simultaneous pipe-routing and platform motion compensation). Cost: $500K-1M per kilometer. Maintenance is harder because platforms move; spare cable must accommodate motion (helical cable design), adding 10-15% cost premium. For 30 platforms, 10 km of inter-array cable = $7-10 million installed. Hybrid systems with two power sources (wind + wave) mean each platform is more valuable (higher output per location), so cable costs per MW are better amortized, but total infrastructure cost is higher.

3. Platform stability in extreme storms. Wind turbines shut down above 25 m/s. Wave energy converters theoretically continue operating in extreme seas, but in practice, they're also rated for max 25-30 m/s wind because the platform itself has stability limits. Floating platforms in extreme storms (100-year events) experience mooring tension often 200-300% of design load. Modern AI systems must predict these extreme conditions 24-48 hours ahead and begin controlled load shedding (reduce both wind and wave generation simultaneously to reduce platform buoyancy and weight, lowering mooring tension). This reduces emergency stress but requires predictive accuracy of sea state forecasts better than current meteorological models provide. Improvement needed: higher-resolution regional wave forecasting (10 km grid vs. current 25-50 km) requires compute investment and, potentially, satellite ocean surface monitoring (Copernicus Sentinel-5 provides wave data, but refresh rate is the limitation).

4. Electrical integration complexity. A 15 MW wind turbine uses a single power converter (rectifier + inverter stack). A hybrid platform with a 15 MW wind system and a 3 MW wave system has two separate generators, two power converters, and different response characteristics (wind is synchronous, waves are variable-speed hydraulic-to-electrical). The offshore substation must stabilize voltage and frequency while managing two asynchronous power sources. This is a challenging control problem—equivalent to the microgrid problem on land, but at sea with limited space and no redundancy. Solution: megawatt-scale power converters with low-latency communication (Ethernet, not legacy SCADA fiber). Cost impact: $500K-1M per platform for dual converter infrastructure, but this amortizes if platforms are operating 25-30 years (depreciation to $20-40K per MW per year).

What does the timeline look like for hybrid floating wind + wave?

2026 (now): Pilot & validation phase. Principle Power, BW Offshore, and SBM are running feasibility studies and small-scale prototypes. University partnerships (MIT, University of Osaka) are testing wave energy converter designs in controlled-wave test facilities. Grid operators (NREL, National Grid ESO in UK) are evaluating control strategies for multi-generator platforms. Expected outcomes: 1-2 publication-scale projects (under 10 MW, proof-of-concept), increased venture capital in wave energy (following similar inflection as floating wind saw 2018-2020).

2027-2028: First commercial deployments (5-30 MW range). Principle Power or BW Offshore likely launches first 15-25 MW hybrid (10 MW wind + 3-5 MW wave) in North Atlantic. Project will be jointly funded by EU (Horizon Europe green energy programs) and private capital. Expect one pilot project per major ocean basin (North Atlantic, Mediterranean, Pacific). These will not yet be cost-competitive with wind-only (hybrids cost 15-20% more per MW due to dual systems), but will provide operational data that informs second-generation designs.

2029-2031: Commercial scaling & cost reduction. By 2030, AI control algorithms will be mature (based on 2-3 years of operational feedback). Component supply chains for wave converters will scale (currently single-workshop artisanal production). Hybrid platforms will reach cost parity with wind-only projects in deep water (>1000m), since additional cost of wave system is offset by higher capacity factors (40-45% hybrid vs. 35-38% wind-only). Expect 200-500 MW of hybrid projects under construction or in late-stage development (permitting) across Europe, North America, and Asia-Pacific.

Post-2031: Mature market. Floating hybrid platforms become standard for ultra-deep water deployment. Fixed-bottom wind retires first (shallow water, aging infrastructure). By 2035, hybrid offshore accounts for 10-15% of new global offshore wind capacity (rest is improved fixed-bottom in 20-80m depths or larger floating wind-only platforms, which dominate in 100-500m). Hybrid platforms are niche but critical: they provide grid stability in remote offshore zones with long transmission distances, reducing battery storage requirements on shore.
